Lightweight Performance and Control

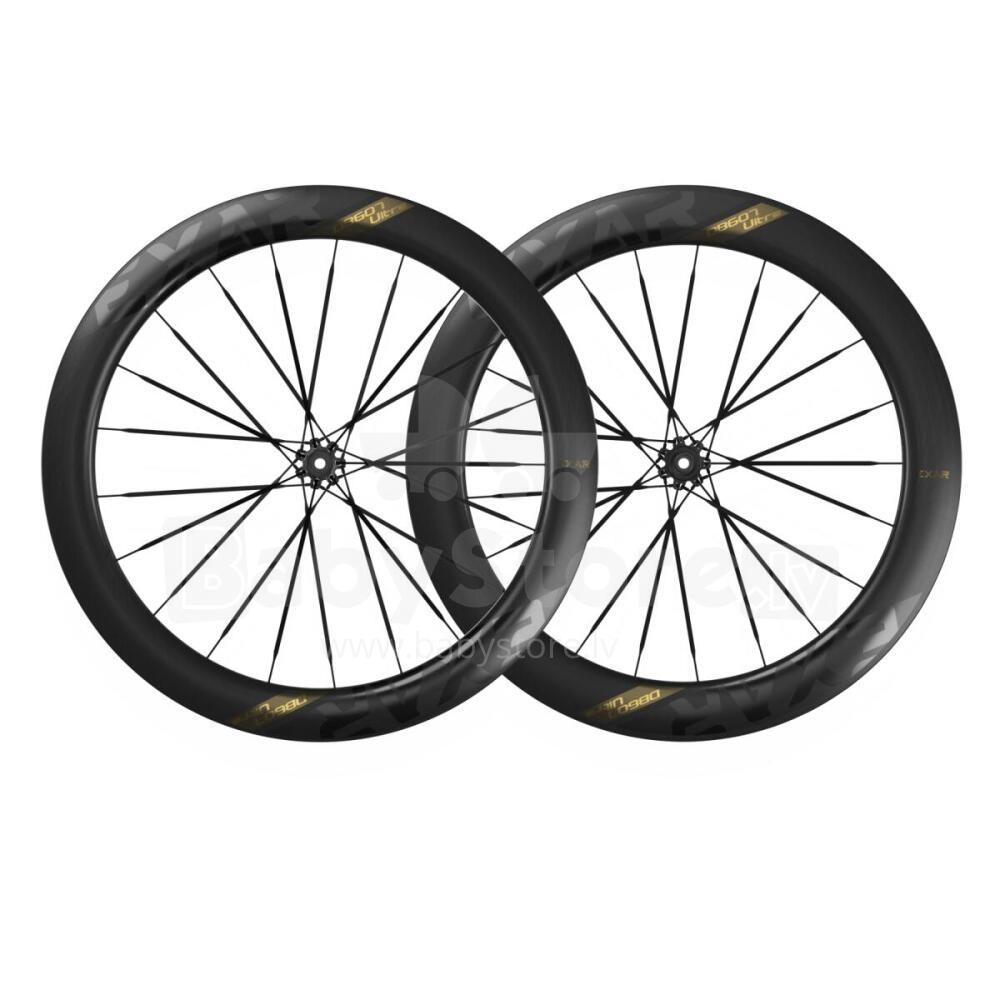

The EXAR Ultra carbon fiber wheelset is built for top-tier performance, combining HI-MOD carbon fiber with a sleek, weight-saving design for enhanced stiffness, smoother starts, and faster acceleration. Its unique lower front and higher rear wheel configuration strikes a perfect balance between stability and control, making it versatile for both climbs and flat terrain. The carbon fiber spokes, 30% lighter and stronger than steel, boost efficiency, while the 2:1 lacing pattern and concealed metal components reduce drag for optimal aerodynamics.
Precision Engagement and Aerodynamic Design
Equipped with a 36-tooth flat ratchet system, the EXAR Ultra series ensures quick, precise engagement and enhanced durability. The 30/32mm wide rims improve stability in crosswinds and, when paired with 28-32c tires, create a flat aerodynamic profile that adds comfort on varied surfaces. The hub’s optimized flange diameter and smoothly finished bearing interfaces maximize stiffness and longevity, while the well-calibrated WR size maintains balanced spoke tension for excellent lateral rigidity.
Smooth Rolling and Impact-Resistant
With low-resistance ceramic bearings, the EXAR Ultra wheelset allows for rapid acceleration and effortless rolling. UCI-certified for impact resilience, it supports both tubeless and clincher tires and comes with rim tape and plugs for weight reduction. Tailored for TPU inner tubes, this wheelset offers stable, high-speed performance, ideal for cyclists who demand reliability and efficiency.
Specification
| DB405 | DB508 | DB607 | |
|---|---|---|---|
| Brake | Disc brake | ||
| Height | Front wheel 40mm, Rear wheel 45mm | Front wheel 50mm, Rear wheel 58mm | Front wheel 60mm, Rear wheel 67mm |
| Weight | 1280g | 1350g | 1460g |
| External Rim Width | 30mm | 30mm | Front wheel 32mm, Rear wheel 30mm |
| Internal Rim Width | 23 mm | ||
| Rim Material | Hi-MOD carbon fiber | ||
| Spoke | 4.0*1.2mm | 5.2*0.8mm | 5.2*0.8mm |
| Front Wheel Spoke Tension | 110kgf ±10% | ||
| Rear Wheel Spoke Tension | Drive side 130kgf ±10%, Non-drive side 110kgf ±10% | ||
| Ratchet | 36T Compatible with DT system. Replaceable ratchet with different tooth amount | ||
| Frame Spacing | 100/142mm thru-axle | ||
| Freehub | Standard Shimano 11-speed (Campagnolo N3W and Sram XDR freehub available separately) | ||
| Compatible Cassette | Shimano 8-12s, Sram 8-12s, Campagnolo 8-13s | ||
| Compatible Tire Type | Clincher tire, tubeless tire | ||
| Maximum Tire Pressure | 110psi for 28c, 100psi for 30c, 90psi for 32c | ||
| Package standard | Carbon fiber front wheel ×1, carbon fiber rear wheel ×1, tubeless rim tape ×2, manual ×1 | ||
Parameters:
| Shipping size, m (Length x Width x Height) | 1.42 x 0.027 x 0.045 |
|---|---|
| Shipping weight, kg | 1.411 |
| Store | Size | Quantity | |
|---|---|---|---|
| Warehouse (5-7 working days) | 10 pcs. |
